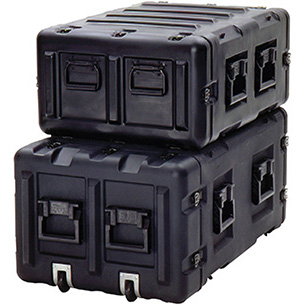

Heavy-Duty Case with Good Vibration Protection

The MAC Rack™ case is textured low-visibility roto molded case with a 19" wide and a 20" or 24" deep EIA standard rack.

Compact and light weight, MAC Rack™ cases boast a smaller footprint to make the most of limited space. The MAC Rack™ case protects with the same rotomolded outer shell and 19" EIA shock mounted rack as the Classic Rack, but with a smaller sway space.

The MAC Rack™ case is perfect for less fragile equipment that still needs protection from shock, vibration, moisture, and impact along with the advantages of a heavy-duty case.

pelican macrack medium duty rack mount case

Specifications


Sizes

  • 3U, 4U, 5U, 6U, 7U, 9U, 11U, 12U, and 14U

G-Rating

  • 50 - 80

Payload

  • 8-shock mounts: Up to 170 lbs.
  • 16-shock mounts: 160 - 200 and 200 - 340 lbs

Sway Space

  • 0.85" sway for the ability to decelerate shock

Base Features

  • Color: Grey (133)
  • Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB)
  • Spring Loaded Stainless Steel Black Handle (SSB)
  • Plastic Comfort Grip Handles
  • Heavy Duty Reinforced Aluminum Rack Frame
  • 8 Shock Mounts (24 lbs to 100 lbs payloads)
  • Edge Casters (on cases with 5" Rear Lids only)
  • Standard Labeling

Options/Accessories

Shock/Vibration System

Cylindrical Shock Mounts isolate equipment from vibration as well as impact forces. Shock mounts vary in size depending on protection requirements - from delicate equipment to rugged electronics.

Applications

  • » Field-Deployed Equipment
  • » Sheltered Applications
  • » Control Consoles and Panels
  • » Radar and Microwave Antennas
  • » Solid-State Circuit Electronics
  • » Radio, TV and Communications Equipment

Customization

MAC Rack™ cases are fully configurable are made to order using the list of options. They can customized by our Technical Sales solution team.

U Size

Rack Depth

Weight

3U

61 cm

15.4 kg

3U

61 cm

15 kg

3U

61 cm

14.5 kg

3U

50.8 cm

15 kg

3U

50.8 cm

14.5 kg

3U

50.8 cm

14.1 kg

4U

61 cm

16.8 kg

4U

61 cm

16.3 kg

4U

61 cm

15.9 kg

4U

50.8 cm

16.3 kg

4U

50.8 cm

15.9 kg

4U

50.8 cm

15 kg

5U

50.8 cm

16.3 kg

5U

61 cm

18.1 kg

5U

61 cm

17.7 kg

5U

61 cm

16.8 kg

5U

50.8 cm

17.7 kg

5U

50.8 cm

17.2 kg

6U

50.8 cm

17.7 kg

6U

61 cm

19.5 kg

6U

61 cm

19.1 kg

6U

61 cm

18.1 kg

6U

50.8 cm

19.1 kg

6U

50.8 cm

18.6 kg

7U

50.8 cm

19.1 kg

7U

61 cm

21.3 kg

7U

61 cm

20 kg

7U

61 cm

19.1 kg

7U

50.8 cm

20 kg

7U

50.8 cm

19.5 kg

9U

50.8 cm

21.3 kg

9U

50.8 cm

20.9 kg

9U

61 cm

22.2 kg

9U

61 cm

21.8 kg

9U

61 cm

21.3 kg

9U

50.8 cm

21.8 kg

11U

50.8 cm

23.1 kg

11U

50.8 cm

22.7 kg

11U

61 cm

24 kg

11U

61 cm

23.6 kg

11U

61 cm

23.1 kg

11U

50.8 cm

23.6 kg

12U

50.8 cm

24.5 kg

12U

50.8 cm

24 kg

12U

50.8 cm

23.6 kg

12U

61 cm

24.9 kg

12U

61 cm

24.5 kg

12U

61 cm

24 kg

14U

50.8 cm

25.9 kg

14U

50.8 cm

25.9 kg

14U

50.8 cm

25.4 kg

14U

61 cm

26.3 kg

14U

61 cm

26.3 kg

14U

61 cm

25.9 kg
