Shock and Vibration Protection in a Smaller Width to Save Space

The SuperMAC™ case is a smooth surface case with a 19" wide and 24" or 30" deep EIA standard rack.

The SuperMAC™ case is our most compact container with the option of a Lock 'N Load removable rack. The SuperMAC™ case strategically uses every inch of space, allowing ample room for wiring and equipment integration - all while providing medium duty protection. The optional removable rack system slides open as easily as a file drawer, for full access to equipment.

The SuperMAC™ case is ideal when you need vibration and shock protection for sensitive electronic equipment but don't have enough space for a Classic Rack Case.

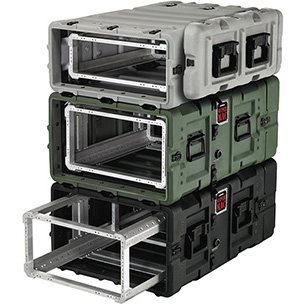

pelican supermac medium/heavy duty rack mount case

Specifications


Sizes

  • 24": 3U, 4U, 5U, 7U, 9U, 11U and 14U
  • 30": 3U, 5U, 7U, 9U

G-Rating

  • > 40 - 70

Payload

  • 25 lbs - 100 lbs (11.3 kg - 45.4 kg)
  • 125 lbs - 200 lbs (56.7kg - 90.7kg)

Sway Space

  • > 1" sway space for the ability to decelerate shock

Base Features

  • Color: Grey (133)
  • Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB)
  • Plastic Comfort Grip Handles
  • Heavy Duty Reinforced Aluminum Rack Frame
  • 8 Shock Isolations Mounts (25 lbs to 125 lbs payloads)
  • Lid Hangers

Options/Accessories

Shock/Vibration System

Shock Isolation Mounts are a patent pending shock mount design made of a heavy-duty rubber that is inserted into the case body at the corners to provide a flexible, shock absorbing attachment for the rack frame.

Applications

  • » Military Rapid Deployment
  • » Field-Deployed Equipment
  • » Sheltered Applications
  • » Control Consoles and Panels
  • » Radar and Microwave Antennas
  • » Solid-State Circuit Electronics
  • » Radio, TV and Communications Equipment

Customization

SuperMAC™ cases are fully configurable and made to order using the list of options. They can also be customized by our Technical Sales solution team.

U Size

Rack Depth

Weight

3U

61 cm

21.8 kg

3U

61 cm

22.7 kg

3U

76.2 cm

25.4 kg

3U

61 cm

23.6 kg

3U

76.2 cm

24.5 kg

3U

76.2 cm

23.6 kg

4U

61 cm

24.9 kg

4U

61 cm

23.1 kg

4U

61 cm

24 kg

5U

76.2 cm

25.9 kg

5U

61 cm

25.9 kg

5U

61 cm

24.9 kg

5U

76.2 cm

27.7 kg

5U

61 cm

24 kg

5U

76.2 cm

26.8 kg

7U

61 cm

28.1 kg

7U

61 cm

27.2 kg

7U

76.2 cm

30.4 kg

7U

61 cm

25.9 kg

7U

76.2 cm

29.5 kg

7U

76.2 cm

28.1 kg

9U

61 cm

27.7 kg

9U

76.2 cm

31.3 kg

9U

76.2 cm

29.9 kg

9U

61 cm

29.9 kg

9U

61 cm

29 kg

9U

76.2 cm

32.2 kg

11U

61 cm

32.2 kg

11U

61 cm

31.3 kg

11U

61 cm

29.9 kg

14U

61 cm

32.2 kg

14U

61 cm

34.9 kg

14U

61 cm

33.6 kg
